Digital Compression Load Cells

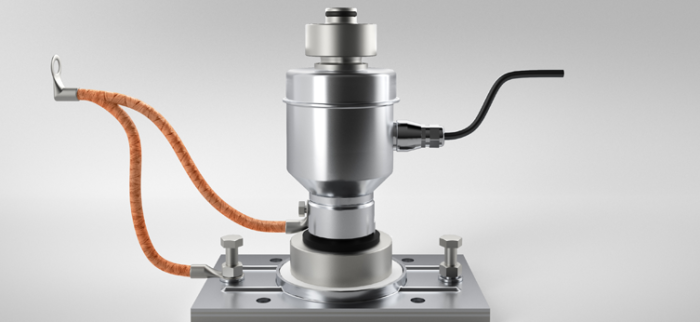

Digital compression load cells for connection to electronic indicators manufactured by Soc. Coop Bilanciai. Strong and reliable, suitable for approved weighing systems up to 6000 divisions. Specially designed for use in weighbridges, they are supplied complete with mechanical accessories and anti-rotation device.
Advantages
CE approved (Directive 2014/31/EU)
NTEP certification
Product suitable for ATEX certification
Structure in AISI 304 Stainless Steel
Versatility of installation
Construction features
- INCLINATION UP TO 5° (15 mm FROM VERTICAL POSITION)

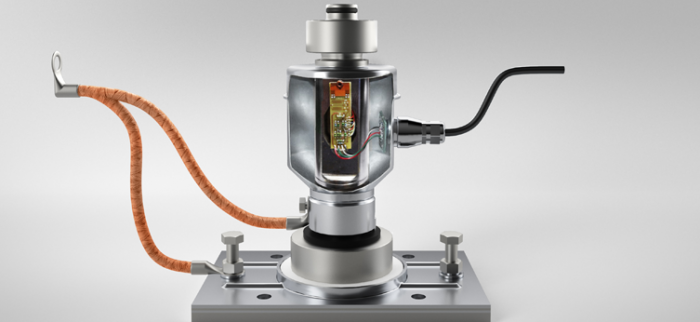

- 8 STRAIN GAUGES
- HEAVY-DUTY PROTECTION (1,5 mm THICKNESS) AT 45° CONE
- MECHANICAL PROTECTION COVER FOR LOWER MOUNTING CUP
- LIGHTNING PROTECTION
- RODENT-RESISTANT CABLE
- SELF-STABILISING SYSTEM WITH ANTI-ROTATION DEVICE
- MAXIMUM PROTECTION FROM RADIO-FREQUENCY INTERFERENCE
Strengths
Each part produced by Cooperativa Bilanciai undergoes several tests to guarantee the high quality level and maintenance of reliability over time:
- Material testing with function simulation tests up to 120% of maximum capacity
- Severe controls on the materials before they are used in production, with metallographic tests and hardness measurements
- Test on each part, with checks on measurementsfor comparison with LAT-certified and calibrated reference cell units, using strength testing machines using direct weights
- Traceability of each cell by serial number and bar code
- Test using strength testing machines using direct weights, sized to each specimen
